Produktinformationen Yuneec Hexacopter H850-RTK
Achtung: Angebot/Preis ohne Kamera! Verschiedene Kameramodelle sind separat bei uns bzw. in unseren Setangeboten erhältlich!
Our hexacopter design offers more safety, power, efficiency, stability and capacity to carry heavier payloads.
Depending on the payload and weather conditions, flight times up to 65 minutes are possible. All H520E payloads are compatible with the H850-RTK. This makes it easier for you to use our payloads on two different platforms: the H520E & the H850.
In addition to the performance and payload flexibility, great emphasis was placed on the H850 flight and data security when developing it. Flight data belongs to you and to nobody else.
The H850 is equipped with a dual IMU, compass, barometer, dual RTK antennas and two smart batteries. Even with only five motors running you are able to land the H850 safely. You can install with one click the YCAP-certified Drone-Tag device for remote ID, which will become mandatory in Europe in 2023.
| Weight: | 5800 gram, inclusive 2 flight batteries (w/o payload) |
| MTOW: | 8800g |
| Max Payload Weight: | 3000g |
| Diagonal Size: | 850mm |
| Unfolded: | 440×365×470 mm |
| Max Ascend Speed: | 3 m/s |
| Max Descent Speed: | 2-5 m/s |
| Max Horizontal Speed: | 20 m/s |
| Max Flight Speed: | 72 km/h |
| Max. Flight Ceiling (MSL): | 5000m |
| Max Flight Time: | 65 minutes (without payload) |
| Battery 23,1volt: | 2x Li-ion HV, 6S,12800mAh |
| Position System: | GPS, Glonass, Beidou&Galileo |
| Hovering Accuracy(Single): | Horizon:±0.5m |
| Vertical:±0.5m | |
| RTK(RMS) Accuracy: | 1cm +1ppm(H); 1.5cm+1ppm(V) |
| Operating Temperature: | -20℃-50℃ |
| -4° F -122° F | |
| Payload Connector: | X-connector |
| Compatible Payloads : | E20TVx, E90X, E30Zx, ETx, S42x, lidar, Spotlight and digital loudspeaker |
| Upward Gimbal: | Optional |
| Hot-swappable Batteries & Payloads: | Yes |
| IP: | x5 |
| Collision Avoidance System: | Millimeter-wave Radar (optional) |
| Remote Controller: | T-One |
| Connectivity Ports and Power Supply H850: | GMAC 1000Mb, USB-C, USB-3 5Gbps, Aux 3.5 mm, Micro-SD, 2x Power 5v+GND, 2x PWM,2x GPIO, 5v,12v&19,8-26,4v, for external devices with high power requirements. |
| Operating Frequency: | 2.4000-2.4835GHz & 5.725-5.850GHz |
| Autopilot: | PX4 Based |
| Drone Remote Identification Device (EU): | LTE+Bluetooth, incl. app and U-space ready (optional module) |
- 7-inch touch screen
- 1920x1200 screen resolution
- 1000 nit luminance
- 15 km range Fcc
- 8 km range Ce
- 8 hours of operation time
- 10.000 mAh/7.4-volt battery
- 40 Mbps dual-band
- Dynamic Frequency hopping
- IP x4
- Cortex A72&A53 high-performance processor
- Android 10
- 32Gb ROM / 4 Gb RAM
- HDMI
- USB-C, USB-3 & USB-2
- Micro SD
- 1.2 kg only
- No data sharing
- RTK (Real-Time Kinematic) module for high accuracy relative positioning: 1cm +1ppm(H); 1.5cm+1ppm(V)
- Dual RTK-antenna for high precision positioning. The dual antennas on the H850-RTK ensure that one antenna is always transmitting in the event that one becomes disabled
- Keep cm precision in even GNSS challenging environment
- Built for faster and more precise mapping (e.g. complex surveying, inspections, mapping, 3D displays)
- 5 Hz update rate of position, velocity and time
- All data including raw GNSS data and real-time solutions can be logged on board - ready for PPK (Post Processed Kinematics)
- Support signals of up to four GNSS constellations among GPS, GLONASS, Galileo and BeiDou
- Compatible with all existing Yuneec H520E camera payloads
SPECIFICATIONS
- Size: 98×58×149mm
- Battery Capacity: 12.800mAh
- Battery Wattage: 295.68Wh
- Standard Voltage: 23.1v (3.85v/cell)
- Charging Voltage: 26.4v
- Battery Type: Li-ion
- Fast Charge: 1C (10 Amp）
- Charging Time: 1,5 hours
- Max Continuous Discharge Current: 64A
- Maximum Discharge Current: 128A
- Weight: 1390 gram
- Operating Temperature: 0℃+45℃
With the H850 Power Charging Case, you are able to charge four H850 batteries and two T-one batteries simultaneously!
Thanks to the hard-case design you can store and transport the batteries safely. The compact design makes it able to carry the power Charging Case easily.
SPECIFICATIONS
- 3.5” Color LCD Display
- 1140 watt (200v-250v)
- 220/110 volt
- Transport case
- Easy to operate
- Buzzer alarm
- Compact (370×270×220mm)
- Foam cover battery protection

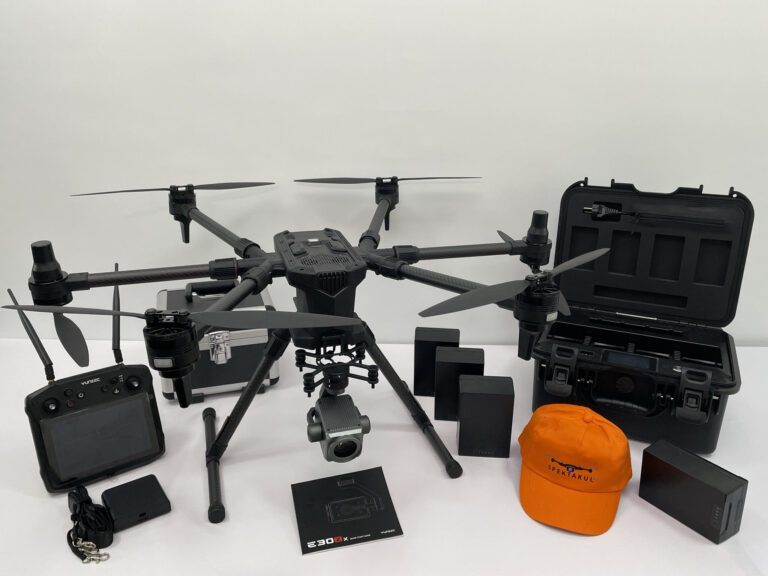

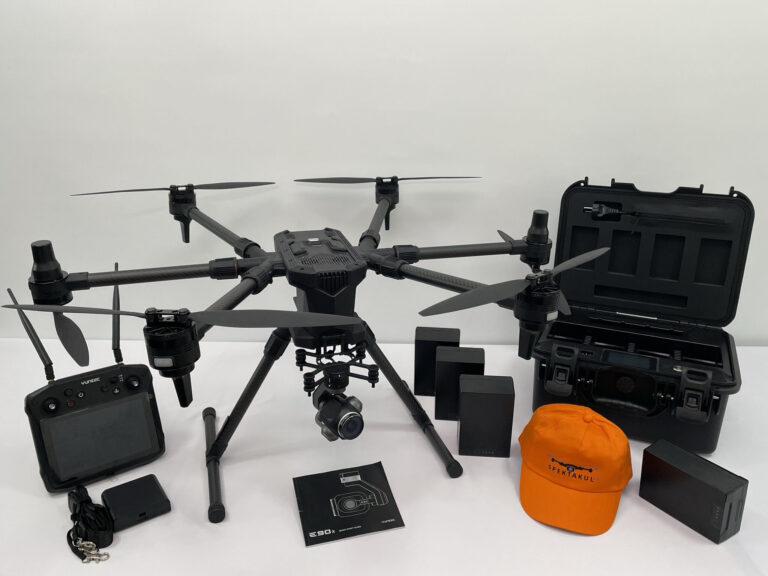

- 1x H850-RTK
- 2x Flight battery
- 1x T-one controller
- 1x T-one battery
- 1x Transport case
- 1x Charger case
- 1x Repair tool kit
- 1x Quick start guide
- 1x Reference card
PAYLOADS | E90x | E30Zx | ETx | E10Tx | E20TVx |
All H520E payloads, incl. LaQuinta, are compatible with the H850
NEW PAYLOADS:
42 MP Camera for surveying
Digital loudspeaker 300-500 meters broadcast range
Spotlight 13400-lumen
Geosun GS100C+ LIDAR Long detection range
